Vermont Castings Gas Stoves Honeywell Valve replacement kits

Summary of Honeywell Valve
Replacement Kits

Honeywell Vented Millivolt Valve Conversions to SIT Valve

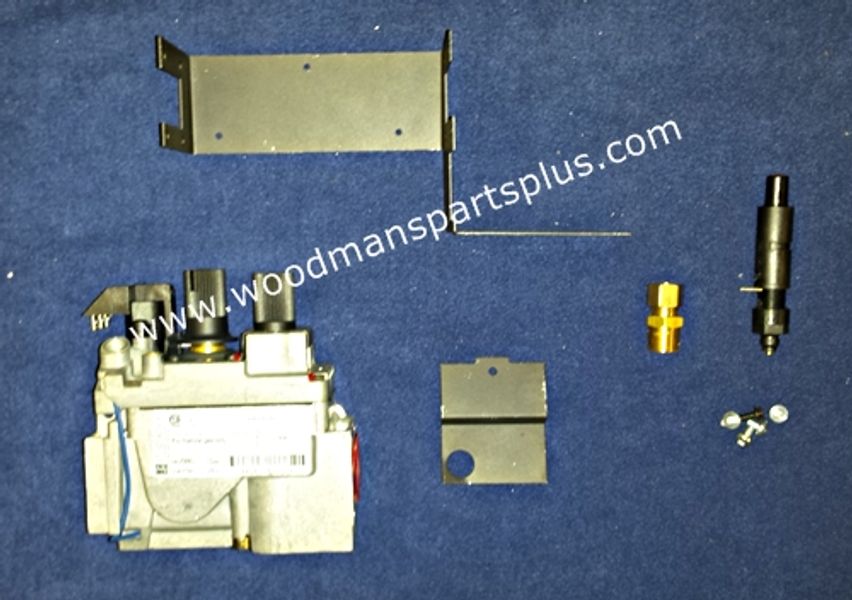

There were several repair kits released in 2006 for replacing Honeywell Millivolt Valves 10001782 (natural gas) and 10001759 (propane) on various Majestic and Vermont Castings Gas Units. These kits all include the appropriate fuel SIT Valve with all brackets, hardware and piezo igniter parts needed to do a complete replacement of the Honeywell Millivolt Valve. See the list below

Item Number

Description

20010680

RP 269 Honeywell to SIT Conversion Stardance & Radiance DV LP

20010684

RP 270 Honeywell to SIT Conversion Stardance & Radiance NV LP

10008800

RP 272 Honeywell to SIT Conversion LHE Series NG

10008893

RP 272 Honeywell to SIT Conversion LHE Series LP

20010811

RP 275 Honeywell to SIT Conversion Stardance & Radiance DV NG

20010812

RP 276 Honeywell to SIT Conversion Stardance & Radiance NV NG






Stardance & Radiance Honeywell Vent-Free Millivolt Valve Conversions to SIT Valve

When existing inventory of the Honeywell Vent-Free Millivolt Valves is used up, direct field replacements of these valves will no longer be possible. MHSC has made available complete burner engines for field service on older units where the valve has failed. These kits include a rating plate and a new manual. These kits will work only on Stardance and Radiance Vent-Free units with drop-in burners. The part numbers for these items are listed below.




Item Number

Description

30005086

RUVSOD RADIANCE UV NG BURNER REPLACEMENT

30005087

RUVSOD RADIANCE UV LP BURNER REPLACEMENT

30005088

STARDANCE UV NG BURNER REPLACEMENT

30005089

STARDANCE UV LP BURNER REPLACEMENT


Stardance & Radiance Honeywell Radio Frequency Valve Conversions to SIT RCSITEA Multi Function System

MHSC no longer has replacement Honeywell Radio Frequency Valves or Remote transmitters. Replacement kits have been designed for the units in the field that had the Radio Frequency Comfort Control System installed and now have valve failure. When installed, the units will be the same as the current Vermont Castings Radiance RADVTC and Stardance SDDVTC models. The kits include the NG control plate assembly (valve, pilot etc.), new rear shroud with junction box, new fan assembly, remote control, new rating label, instructions and current manual. For LP, a conversion kit needs to be ordered as well. See below for a list of all the kits. Item Number




Item Number

Part Description

30005104

Radiance RADVTC NG Burner Replacement Kit

30005105

Stardance SDDVTC NG Burner Replacement Kit

20300165

Radiance RADVTC NG to LP Conversion Kit

20300126

Stardance SDDVTC NG to LP Conversion Kit


Discontinued CFM Fireplaces Using Honeywell Radio Frequency Valve Conversions to SIT RCSITEA Multi Function System

Replacement kits have been designed for discontinued CFM gas units in the field that had the Radio Frequency Comfort Control System installed and now have valve failure. MHSC has designed the kits for only the model listed below. The kits include a valve, valve bracket if needed, pilot assembly, pilot bracket if needed, remote control with receiver, piezo igniter with bracket and instructions. See below for a list of the kits.




Item Number

Part Description

20301078

DV360RFN / DV580RFN / DVRT36RFN / DVB4136RFN RF to RCSITEA Conversion

20301079

DV360RFP / DV580RFP / DVRT36RFP / DVB4136RFP RF to RCSITEA Conversion

20301076

36XDVRFN RF to RCSITEA Conversion

20301077

36XDVRFP RF to RCSITEA Conversion

20301080

RFSDV34RFN RF to RCSITEA Conversion

20301081

RFSDV34RFP RF to RCSITEA Conversion

20301208

LHEC20/30RFN / LHECDV20/30RFN / RHE32/42RFN / RHERHEDV32/42RFN RF to RCSITEA Conversion

20301209

LHEC20/30RFP / LHECDV20/30RFP / RHE32/42RFP / RHEDV32/42RFP RF to RCSITEA Conversion



Official MHSC Bulletin 2010-04

REF#
SKU
Name
Price
Qty
2001-0684
Each
$317.00
add to cart
2001-0680
Each
$299.00
add to cart
2001-0811
Each
$259.00
add to cart
20300165
Each
$140.00
add to cart
20301081
Each
$1,064.00
add to cart
20301080
Each
$996.00
add to cart
20301077
Each
$912.00
add to cart
20301076
Each
$912.00
add to cart
20301079
Each
$722.00
add to cart
20301078
Each
$676.00
add to cart
20301209
Each
$687.00
add to cart
20301208
Each
$676.00
add to cart
