Waterford Erin Phase I, is the same as the Waterford Erin Phase II and the Waterford Erin Coal Stove.
Minimum Clearances to Combustibles
From front of stove 48" 1200mm
From back of stove 24" 600mm
From side of stove 19" 480mm
From corner installation 12" 300mm
From the flue pipe 23" 580mm
Reduced Clearances
When the Waterford back shield and pipe shield
are used the clearance may be reduced to 9 1/2"
from the back shield (10 1/2" from the flue collar)
|
|
Floor Protection
When installing this heater on a combustible floor, a floor
protector, consisting of a layer of non combustible material
at least 3/8" (10mm) thick or 1/4" (6mm) thick covered with
1/8" (3mm) sheet metal is required to cover the area
under the heater and to extend at least 18" (460mm) at
the front and 8" (200mm) to the sides and rear, as embers
may fall out from the door when stoking or fueling.
|
Waterford Erin Phase I Parts List
Specific parts are no longer available for this manufacturer.
Generic parts such as

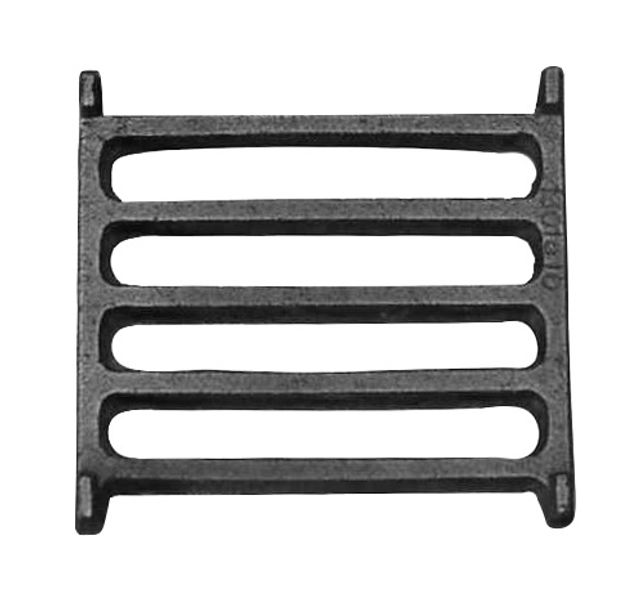

grates,
gaskets,

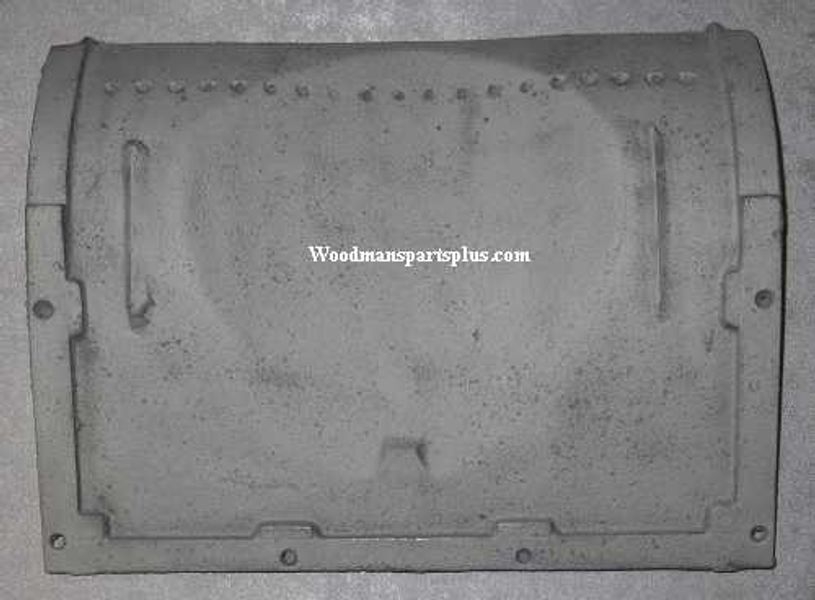

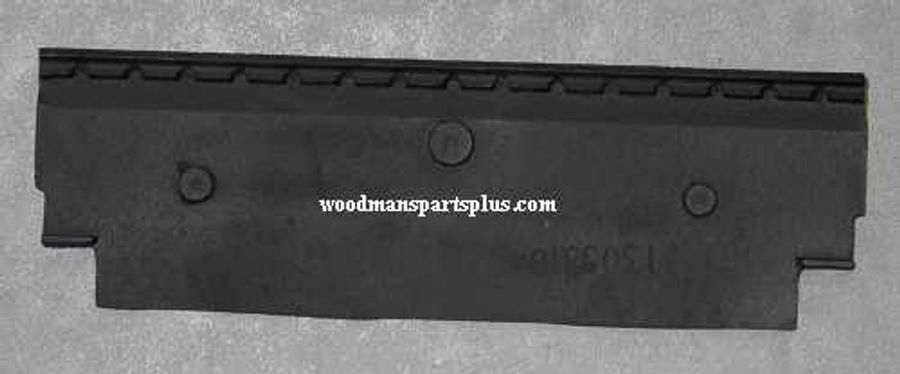

baffles, etc may be
available by clicking the underlined word above or by
searching our website using the keyword search bar.
